Framed Minnesota Fat Bike

The fat bike that started it all, the Minnesota, got a facelift for 2020. We ditched the SRAM X5 1×9 drivetrain and upgraded to a Shimano Deore M6000 wide range 1×10 drivetrain. The precision of Shimano index shifting combined with a wide range 11-42 cassette and 28 tooth front chainring gives you all the gearing needed to climb up steep hills and punch it down the other side. We kept the simplicity of the 135 front and 170 rear quick release axles to make tube and tire changes tool-free and easy on the fly. The tried and true 6061 alloy frame and fork keep weight down while not sacrificing durability. The unique geometry of this frame puts the rider in a comfortable position while mobility may be limited by layers of warm clothing. Look further than the all new 2020 Framed Minnesota to keep the fun in fat biking.
Frame: FRAMED Exclusive Oversized 6061 Aluminum Alloy frame. TIG Welded Oversized 6061 Aluminum Alloy, Integrated Headset, Replaceable Derailleur Hanger, Cage Brazeons, Sealed 100mm Bottom Bracket. 16″ 18″ 20″. Please see sizing chart for correct stand over
• Fork: FRAMED 6061 Aluminum Alloy; oversized straight blade, disc mount, 135mm QR axle
• Headset: Neco Headset 1 1/8″
• Gear: 1X10, Front 28t Rear 11-42
• Crankset: Hollow Spindle Alloy, 28t, alloy crankarms with external cup bearings
• Bottom Bracket: Sealed Shell external cup bearing
• Cassette: Sunrace 11-42t Cassette
• Shifters: Shimano Deore M6000 10 speed trigger shifters
• Front Derailleur: NA
• Rear Derailleur: Shimano Deore M6000, medium cage
• Chain: KMC X10 Stretch-resistant ECO- ProteQ for superior rust resistance
• Brakes: Avid BB5 mechanical disc, Inboard Knob Pad Adjustment, 160mm rotors
• Brake Levers: Avid FR-5; Aluminum, Reversible, Flat Rate Pull Reach Adjustment, Qwik-Adjust Barrel Adjuster

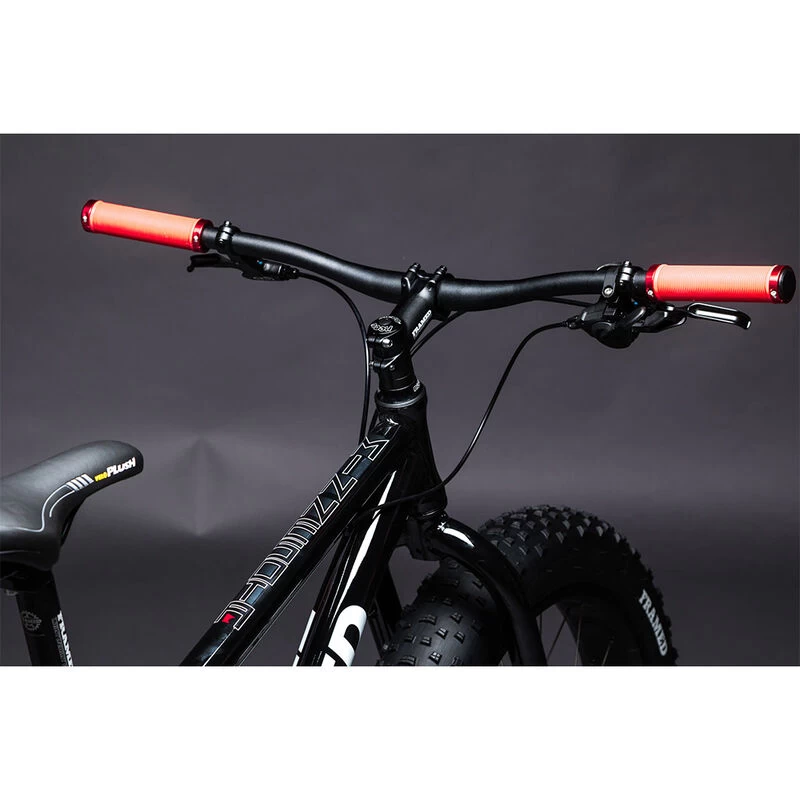

• Handlebar: FRAMED Lightweight Aluminum Alloy, 19mm rise, 12 degree sweep, 740mm
• Grips: FRAMED lightweight low profile lock on
• Bar Stem: FRAMED Aluminum Alloy 80mm Threadless 6 degree rise, 4 bolt
• Saddle: Velo S2
• Seat Clamp: Promax Seatpost Clamp MX-86 35mm 8NM
• Seat Post: FRAMED Lightweight Aluminum Alloy 400mm X 30.9mm
• Front Hub: Alloy 32 hole, 135mm, Quick Release Axle
• Rear Hub: Alloy 32 hole, 170mm, Quick Release Axle
• Rims: FRAMED Aluminum Alloy Single Wall Rim, 80mm wide, 32h, Weight Reducing Cut Outs, Double pinned, Not Tubeless Compatible

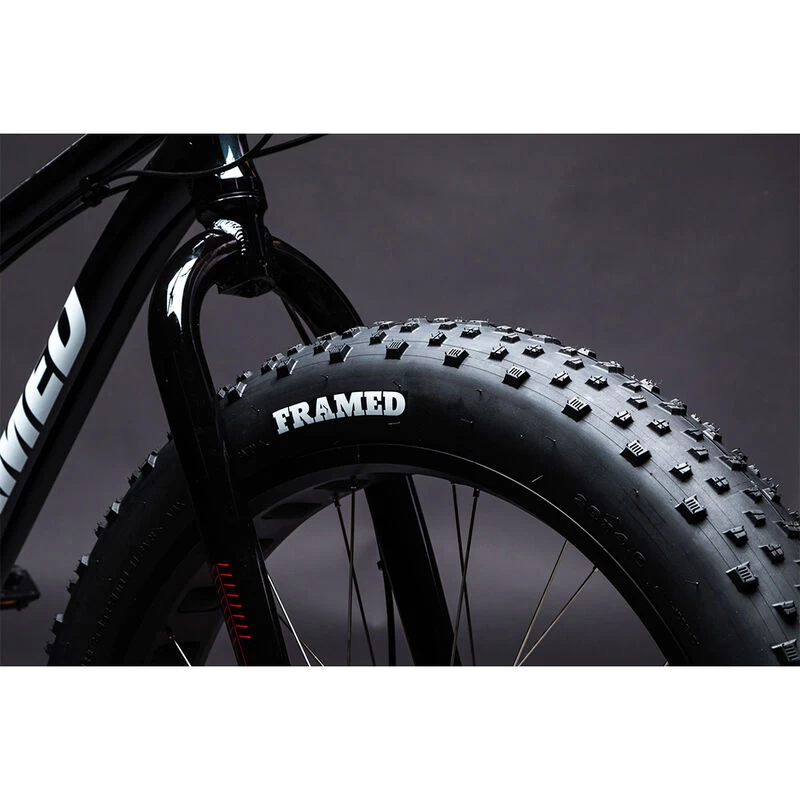

• Tires: FRAMED Fat Tire 26″ x 4″ 60 TPI Folding All weather tread ultralite casting
• Pedals: Wellgo B223BN Dense Composite plastic trail pedals
• Weight: 34 lbs 4oz: Framed bases the weight of their MN 2.0 bikes on an average 18″ Frame. The exact weight may vary slightly from what is posted.
