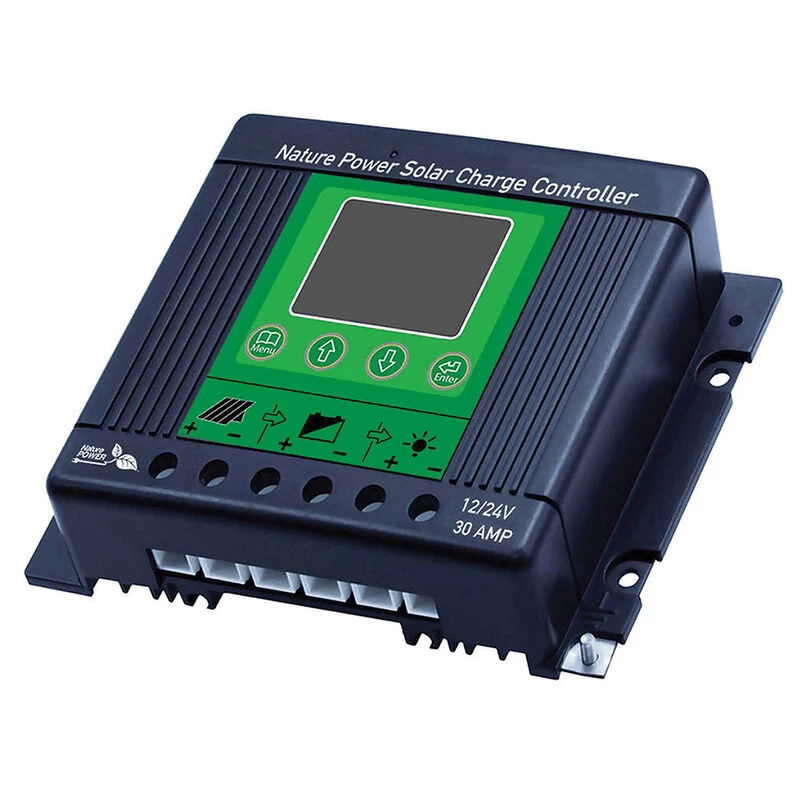

Nature Power 30-Amp Solar Charge Controller

Any solar panel that is rated 12 watts or higher requires the use of a solar charge controller. The Nature Power 30-Amp Solar Charge Controller regulates the current and voltage going to the battery and prevent over-charging.

• Pre-set charging modes available for most common battery types
• Automatic recognition of 12V/24V battery system
• Provides multiple load control mode options
• Industrial-grade design with reverse polarity protection
• 5V 1A USB outlet provides charging for mobile devices
• APP ChargePro for mobile phone monitoring and operation (available at iOS App Store and Google Play Store)

SPECIFICATIONS
Charge Controller Type: Pulse Width Modulation (PWM)

DC Input
Max Solar Input Voltage: Input Current: 30A (Max)
Solar Panel Rating (Max): 12V/450W; 24V/900W

Charge Controller Output to Battery
Battery Rating: 12V / 24V (Auto Detect)
Battery Type: SEL / GEL / FLD / Li / Use
Charge Voltage Range: 9~15V (14.2V default)
Float Voltage Range: 9~15V (13.8V default)

DC Load
DC Load Current: 30A (Max)

Protection
PV Reverse Polarity: Protected
Boost Charge Recovery Voltage: 13.2V
Over-Discharge Recovery Voltage: 12.6V
