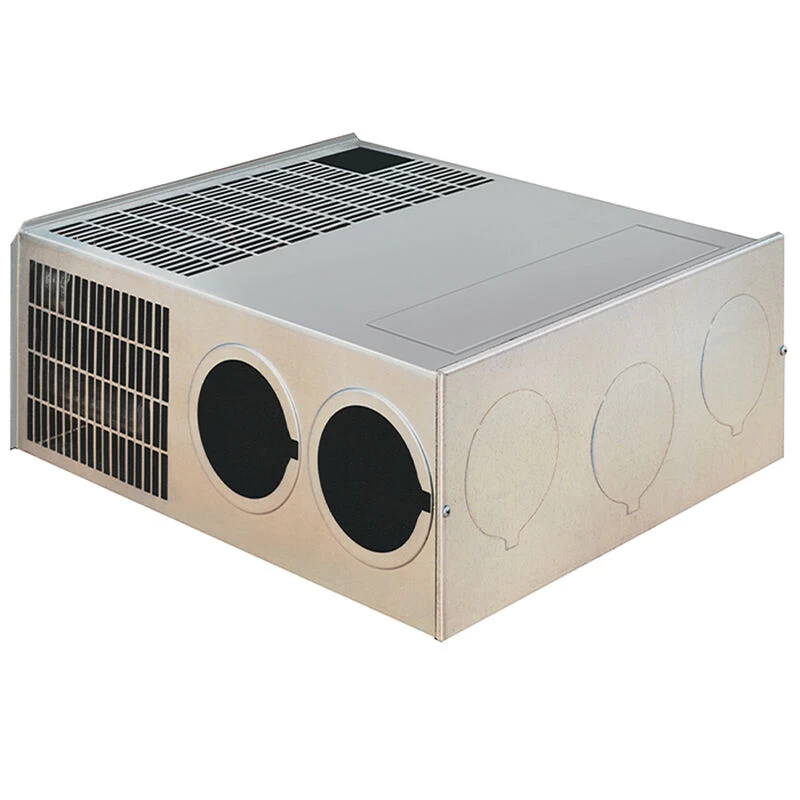

Suburban Airxcel SF-25Q RV Furnace

The Suburban SF-25Q Furnace provides maximum heating performance in a ducted unit with a 25,000 BTU/h capacity. Yet at only 7.5″ high, it can be easily installed in areas that might otherwise be left unused. With nine duct connection choices (top, front, side, and bottom), the SF-25Q offers almost unlimited design flexibility in mid-size and large RVs.

The SF-25Q Model features top or side rear gas and electrical connections with an exterior access door for installation and service access. For design flexibility, all SF-Q Models have identical cabinet dimensions and feature quiet, multi-ported stainless steel burners, sealed forced-draft combustion, automatic direct spark ignition, and low amp draw.

• Model: SF-25Q
• BTU/h Input: 25,000
• Dimensions: 7.5″H x 17″W x 20″D
• Voltage: 12V DC
• Amp Draw: 7.0
• Weight: 29 lbs.
• Duct Outlet: 4″ round sides/bottom; 4″ x 14″ bottom
