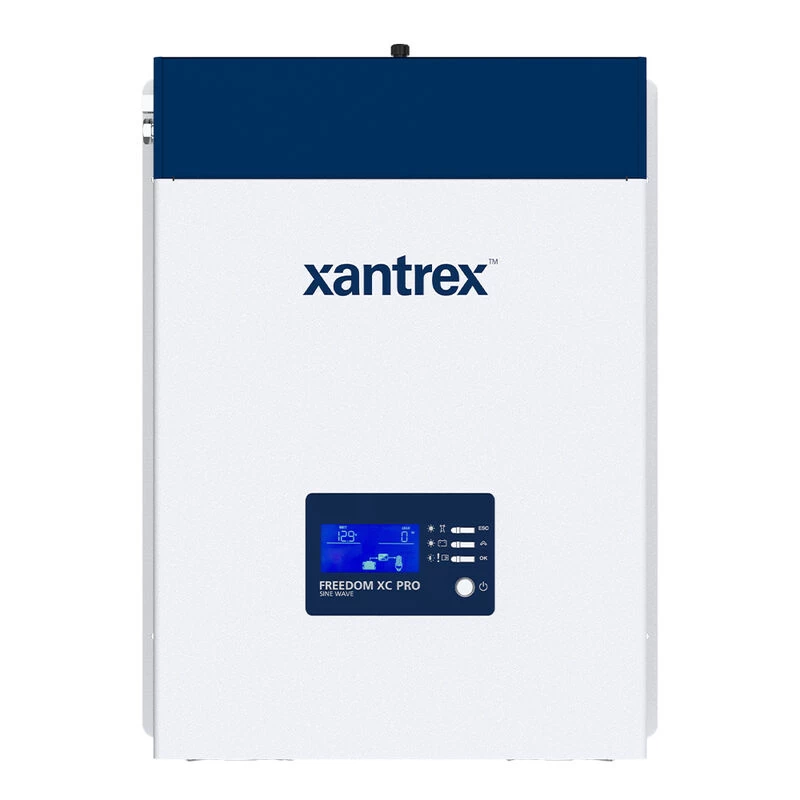

Xantrex Freedom XC Pro 3000 Inverter / Charger

The Xantrex Freedom XC Pro 3000 is a true sine wave 120 VAC inverter/charger with built-in transfer switch. Features include support for RV-C, NMEA 2000, and J1939 protocols, more charging power, the ability to charge lithium batteries and dead batteries, an extended surge rating, and an ignition control. Configure and monitor system performance via Bluetooth app using the optional Freedom X Bluetooth remote panel (item 133800 sold separately).

Seamless Integration
The Freedom XC Pro Inverter/Charger offers premium performance in a lightweight compact package. It cranks out full output in invert or charge mode from -4°F to 104°F for operation in all climate temperatures. The extended surge rating of the Freedom XC makes it ideal to start difficult loads including fridge and microwave. The quick-connect terminals at AC IN/OUT make installation a breeze.

Built-In Communications Card
Supports seamless integration with third party monitoring and control display panels that use RV-C, NMEA 2000, or J-1939 communication protocols. Easily upgrade firmware or quickly apply OEM-configured settings using the built-in USB port.

• Built-in communications card
• Highly configurable for OEM-specific settings
• Charge dead batteries down to 0 V
• Charge lithium ion batteries
• 5-second power surge for motor loads
• Monitor and configure via Bluetooth app on iOS and Android
• Power laptop, TV, fridge, microwave, coffee maker, and much more

Inverter Specifications
AC Output Operating Voltage Options: 120, 110, 108V AC
Continuous Output Power: 3000W
Continuous AC Output Current: 25A
Surge Power: 6000W
Frequency (configurable): 60 (or 50) Hz
Peak Efficiency: 91%
Full Load Efficiency: =84%
Operating Input AC Pass-Through Voltage Range: 85-140 VAC
Safe Non-Operating Input AC Voltage Range: up to 240 VAC RMS
Power Factor at Full Charge Rate: >98%

Battery Charger Specifications
Min Battery Voltage for Charging: 0.0 VDC
Max DC Output Voltage: 18.0 VDC
Selectable DC Output Current: 5 – 100 A
Full Load Max AC Input Current: 25 Arms
Max DC Charge Current: 100A

General Specifications
Operating Temperature Range: -4°F to 140°F with output derated above 104°F
Transfer Relay AC Current Rating: 50A surge, 40A continuous
DC Input Operating Voltage Range: 10.1-18.0 VDC
DC Input Max Non-Operating Voltage: 25.2 VDC
DC Input/Output Nominal Voltage: 12.0 VDC
DC Nominal Current at Full Load: 304A DC
Dimensions without Flanges: 15.4″L x 10.8″W x 4.9″H
Dimensions with Flanges: 16.0″L x 12.0″W x 4.9″H
Weight: 18.6 lbs.
