Zamp Solar Legacy Black 190-Watt Solar Panel Deluxe Kit

The Zamp Solar Legacy Black 190-Watt Solar Panel Deluxe Kit is the perfect starter kit. Step into the world of serious panel configurations and charging potential on your overland rig or RV. This complete entry-level kit is designed to be expanded with up to three additional 190-watt panels.

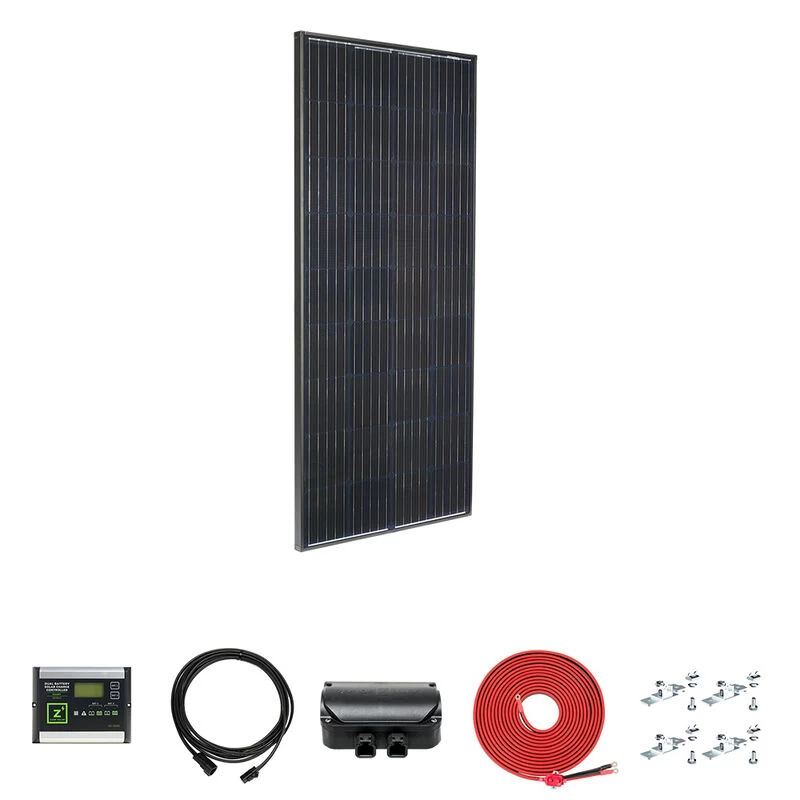

DELUXE KIT INCLUDES
Zamp Solar Legacy Black 190-Watt Solar Panel

Set of 4 Universal Reversible Mounting Feet Kit

10′ ATP-to-ATP Solar Panel Wiring Extension

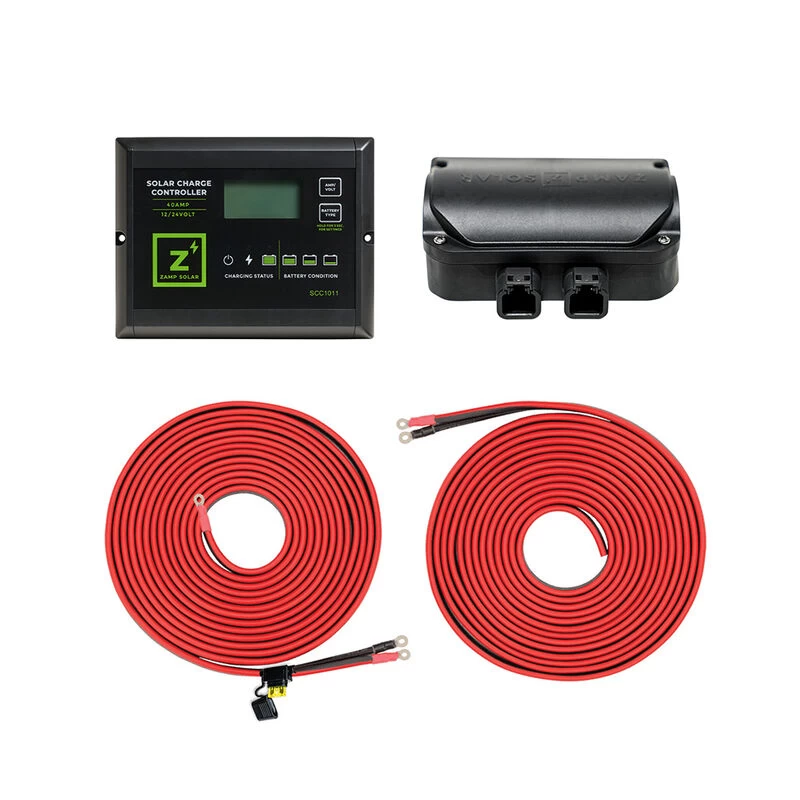

40-Amp PWM Digital Charge Controller

2-Port ATP Solar Roof Cap
• Plug any Zamp Solar panel directly into the cap
• Easily expandable
• Comes with mounting hardware and a gasket

Complete Wiring Harness
• Pre-terminated for fast installation
• 15′ roof cap to charge controller wire
• 10′ charge controller to battery wire (fused)

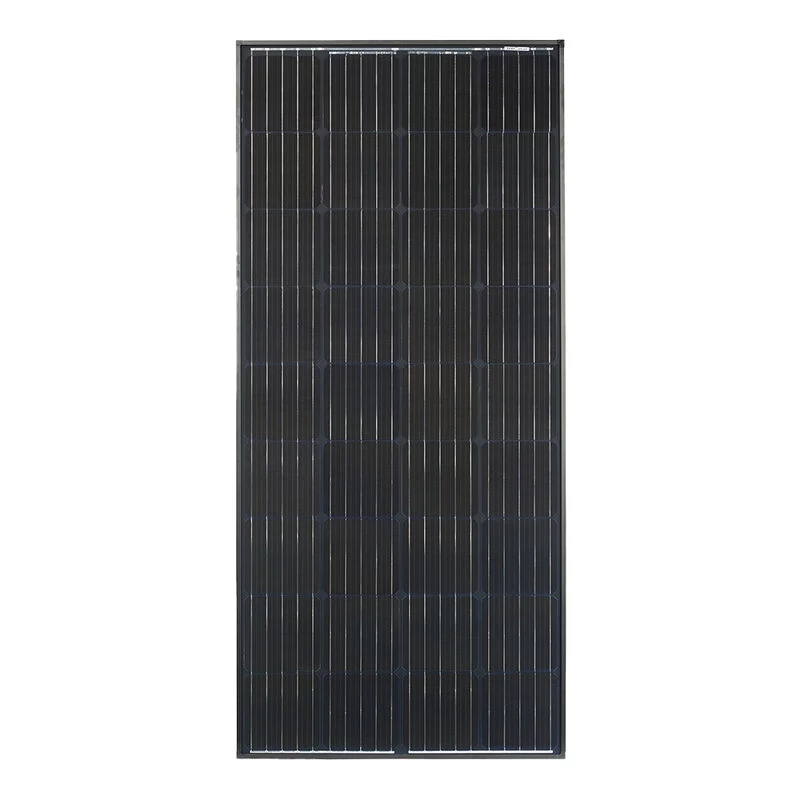

LEGACY BLACK 190-WATT SOLAR PANEL
Continuing the Legacy, this solar panel is now upgraded for the ultimate performance at a price everyone can get behind. New features include an anodized black Legacy Series frame, low-profile junction box for increased shade resistance, and a black solar back sheet to help absorb as much renewable solar energy as possible. Now, all Legacy Series Solar Panels feature Plug & Play ATP Series Quick Connections to make integration and resistance to the elements better than ever. Zamp Solar Panels are backed by a 25-year output warranty and handcrafted in the USA. Installation is a breeze with the 360° Omni-Rail Quick Mounting System.

Perfectly designed for all mobile rooftop solar applications, the Legacy Black Series 190-Watt Panel is engineered to be compatible with all 12, 24, or 48-volt battery systems. Experience a new spin on the traditional panel design with increased efficiency providing more output within a smaller footprint.

Omni-Rail Quick Mounting System – Take the stress out of installation. This quick-mount system utilizes hardware channels engineered into extruded aluminum frames. These channels house T-nuts that you can reposition to match any desired location along the rail. Once in place, the mounting feet can be attached using the T-nut and lock washer.

Stormproof – Every component on this panel is built to withstand whatever mother nature throws your way. Rain, snow, sleet, hail – you can trust that Zamp Solar Panels will stand up to the elements.

AR-Coated Tempered Glass – The glass used to seal the solar cells offers high light transmittance and low reflectivity to ensure you get the most of what the sun provides on any given day.

POE Encapsulate – Protecting the solar cells directly affects the longevity of the product. POE Encapsulate offers improved thermo-mechanical properties; UV protection; corrosion prevention; improved volume, heat, and humidity resistance; and higher volume resistivity.

Black Back Sheet – The black back sheets are designed to absorb the most solar energy while also significantly increasing the lifespan of the solar panel.

Reinforced Corners – Living comfortably outdoors means dealing with unforeseen bumps in the road. Thankfully, these panels are engineered to withstand rugged terrain. Corner protectors keep your frame safe and secure around the panel components.

Ultra-Low Profile Junction Box – PCB-based junction box provides higher efficiency and improved shade resistance.

ATP Quick-Connect Plugs – Plug and play. It’s that simple. These ATP connections provide ample energy flow while protecting connections from the elements. In addition, all ATP plugs are weatherproof and IP67 rated, preventing water damage even in inclement weather.

Solar Panel Specs
Weight: 24.25 lbs.
Panel Dimensions: 58.3″ x 26.4″ x 1.5″
Wattage Output: 190 watts
Amp Output: 9.5 amps
Warranty: 25-year output

40-AMP 5-STAGE PWM CHARGE CONTROLLER
The Zamp Solar 40-Amp Charge Controller can regulate up to 800 watts and is compatible with lithium, gel, AGM, conventional lead-acid (wet) batteries, and LTO.

Lithium Battery BMS Wakeboard Feature – Integrated solar boost functionality will deliver the power necessary to wake a BMS (battery management system) when a hibernation event is triggered, resulting in a non-responsive battery. Simply use the solar controller to get your system back on track and charging again.

Protects and Regulates – This charge controller uses pulse width modulation (PWM) and five stages of charging to regulate the flow of electricity to your battery. This protects your battery from overcharging, expands your battery’s lifespan, and keeps your panel safe from back-flow electrical currents, among many other protections and benefits.

Monitors and Indicates – Its large digital display lets you monitor battery voltage, charging current, charging capacity (amps per hour), battery types, full charge, and system faults. Colored LEDs indicate operational status and battery conditions.

Flexible and Customizable – This 40-amp charge controller is weather-resistant and can be surface-mounted on your wall or flush-mounted inside the wall. It’s compatible with the Zamp battery temperature cable and remote LCD display that lets you keep tabs on your power from wherever it’s most convenient.
